DeyeAlt-i-en-system5,12 kWh

SUN-BK(80-250)-5.12KWH-EU-AM4-18L/32L

SUN-BK(80-250)-5.12KWH-EU-AM4-18L/32L samler lagring og effektelektronik i ét system, så der er mindre at planlægge og kabelføre på stedet. Det fås i 11 modeller, 5,12 kWh.

Vi giver tilbud på produktet alene eller sammen med en Deye-hybridinverter og det tilbehør systemet har brug for. Tilgængelighed, leveringstid og levering til din adresse bekræftes i det skriftlige tilbud.

Bed om et tilbud Datablad

Ingen priser online: hver ordre får et skriftligt tilbud.

Producentens kategori: All-in-One ESS
Nominel værdi: 5,12 kWh
Modeller på denne side: 11

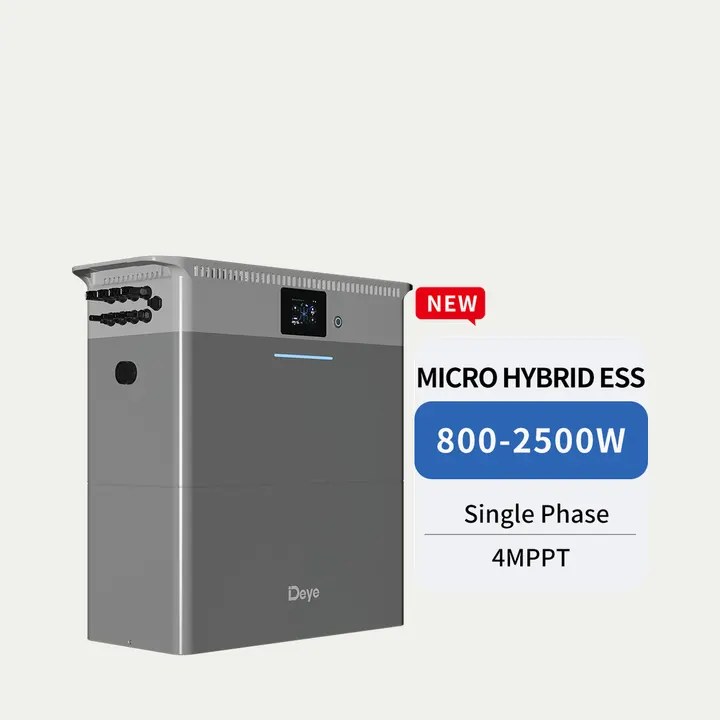

Deye SUN-BK(80-250)-5.12KWH-EU-AM4-18L/32L

Modeller

Model	Nominel værdi
SUN-BK80-5.12KWH-EU-AM4-18L	0,8 kW
SUN-BK100-5.12KWH-EU-AM4-18L	1 kW
SUN-BK160-5.12KWH-EU-AM4-18L	1,6 kW
SUN-BK200-5.12KWH-EU-AM4-18L	2 kW
SUN-BK250-5.12KWH-EU-AM4-18L	2,5 kW
SUN-BK80-5.12KWH-EU-AM4-32L	0,8 kW
SUN-BK100-5.12KWH-EU-AM4-32L	1 kW
SUN-BK160-5.12KWH-EU-AM4-32L	1,6 kW
SUN-BK200-5.12KWH-EU-AM4-32L	2 kW
SUN-BK250-5.12KWH-EU-AM4-32L	2,5 kW
AE-F5.12	5,12 kWh

Tekniske specifikationer

Værdier som offentliggjort af producenten, én kolonne pr. model hvor producentens tabel har dem.

Kun forskelle

Vælg model

Gå til en gruppe

SUN-BK(80-250)-5.12KWH-EU-AM4-18L › Battery Input Data
SUN-BK(80-250)-5.12KWH-EU-AM4-18L › PV String Input Data
SUN-BK(80-250)-5.12KWH-EU-AM4-18L › AC Input / Output Data
SUN-BK(80-250)-5.12KWH-EU-AM4-18L › Efficiency
SUN-BK(80-250)-5.12KWH-EU-AM4-18L › Equipment Protection
SUN-BK(80-250)-5.12KWH-EU-AM4-18L › General Data
SUN-BK(80-250)-5.12KWH-EU-AM4-32L › Battery Input Data
SUN-BK(80-250)-5.12KWH-EU-AM4-32L › PV String Input Data
SUN-BK(80-250)-5.12KWH-EU-AM4-32L › AC Input / Output Data
SUN-BK(80-250)-5.12KWH-EU-AM4-32L › Efficiency
SUN-BK(80-250)-5.12KWH-EU-AM4-32L › Equipment Protection
SUN-BK(80-250)-5.12KWH-EU-AM4-32L › General Data
AE-F5.12 › Battery Technical Specification
AE-F5.12 › Other Technical Specification

En værdi der strækker sig over alle modelkolonner, er den samme for alle modeller.

SUN-BK(80-250)-5.12KWH-EU-AM4-18L › Battery Input Data
Model	SUN-BK80-5.12KWH-EU-AM4-18L	SUN-BK100-5.12KWH-EU-AM4-18L	SUN-BK160-5.12KWH-EU-AM4-18L	SUN-BK200-5.12KWH-EU-AM4-18L	SUN-BK250-5.12KWH-EU-AM4-18L
Battery Type	LiFePO4
Battery Voltage Range(V)	44.8-57.6 V
Battery Nominal Energy (Wh)	5120Wh
Max.Charging/Discharging Current(A)	50A
Charging Strategy for Li-ion Battery	Self-adaption to BMS

SUN-BK(80-250)-5.12KWH-EU-AM4-18L › PV String Input Data
Model	SUN-BK80-5.12KWH-EU-AM4-18L	SUN-BK100-5.12KWH-EU-AM4-18L	SUN-BK160-5.12KWH-EU-AM4-18L	SUN-BK200-5.12KWH-EU-AM4-18L	SUN-BK250-5.12KWH-EU-AM4-18L
Max. PV access power (W)	4400W
Max. Operating PV Input Current (A)	18+18+18+18A
Max. Input Short-Circuit Current (A)	27+27+27+27A
Rated PV Input voltage (V)	42.5V
Start-up Voltage (V)	25Vdc
MPPT voltage range (V)	20 ~ 55V
No. of MPP Trackers/No. of Strings MPP Tracker	4/1+1+1+1

SUN-BK(80-250)-5.12KWH-EU-AM4-18L › AC Input / Output Data
Model	SUN-BK80-5.12KWH-EU-AM4-18L	SUN-BK100-5.12KWH-EU-AM4-18L	SUN-BK160-5.12KWH-EU-AM4-18L	SUN-BK200-5.12KWH-EU-AM4-18L	SUN-BK250-5.12KWH-EU-AM4-18L
Rated AC Input/Output Active Power (W)	800W	1000W	1600W	2000W	2500W
Max. AC Input/Output Active Power (W)	880W	1100W	1760W	2200W	2750W
Max. off grid power (W)	2500W
Rated AC Input/Output Current (A)	3.7A / 3.5A	4.6A / 4.4A	7.3A / 7.0A	9.1A / 8.7A	11.4A / 10.9A
Max. AC Input/Output Current (A)	4A / 3.9A	5A / 4.8A	8A / 7.7A	10A / 9.6A	12.5A / 12A
Peak Power (off-grid) (W)	2 time of rated power, 10s
AC Input / Output Frequency and Voltage	50Hz ( 45Hz ~ 55Hz ) , 60Hz ( 55Hz ~ 65Hz ) , L+N +PE , 220 / 230 Vac
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Max. Continuous AC Passthrough (grid to load)(A)	30A
DC Injection Current	<0.5%In

SUN-BK(80-250)-5.12KWH-EU-AM4-18L › Efficiency
Model	SUN-BK80-5.12KWH-EU-AM4-18L	SUN-BK100-5.12KWH-EU-AM4-18L	SUN-BK160-5.12KWH-EU-AM4-18L	SUN-BK200-5.12KWH-EU-AM4-18L	SUN-BK250-5.12KWH-EU-AM4-18L
Max. Efficiency	96.5%
Euro Efficiency	96.0%
MPPT Efficiency	>99%

SUN-BK(80-250)-5.12KWH-EU-AM4-18L › Equipment Protection
Model	SUN-BK80-5.12KWH-EU-AM4-18L	SUN-BK100-5.12KWH-EU-AM4-18L	SUN-BK160-5.12KWH-EU-AM4-18L	SUN-BK200-5.12KWH-EU-AM4-18L	SUN-BK250-5.12KWH-EU-AM4-18L
Integrated	DC reverse polarity protection , AC Output Overcurrent Protection , AC Output Overvoltage Protection , AC Output Short Circuit Protection Thermal Protection , Insulation Impedance detection , Anti-islanding protection
Surge Protection Level	TYPE II(DC),TYPE II(AC)

SUN-BK(80-250)-5.12KWH-EU-AM4-18L › General Data
Model	SUN-BK80-5.12KWH-EU-AM4-18L	SUN-BK100-5.12KWH-EU-AM4-18L	SUN-BK160-5.12KWH-EU-AM4-18L	SUN-BK200-5.12KWH-EU-AM4-18L	SUN-BK250-5.12KWH-EU-AM4-18L
Max. Inverter Parallel NO.	3 pcs (up to 7.5 kW rated output)
Communication Interfaces	Wi-Fi, Bluetooth, LoRa
Operating Temperature Range (°C)	-10°C ~ 55°C, >45℃ Derating,( -20℃~55℃ with heating, optional)
Permissible Altitude (m)	2000m
Ingress Protection(IP) Rating	IP65
Cabinet Size( W × H × D )	560 × 510 × 210mm
Weight (kg)	52±3kg
Permissible Ambient Humidity	0% ~ 95% ( No Condensing )
Warranty	10 years
Grid Regulation	VDE 4105,IEC61727/62116,VDE0126,AS4777.2,CEI0-21,EN50549-1,G98,C10-11,UNE217002
Safety EMC / Standard	IEC 62619,UN38.3,IEC/EN62109-1, IEC/EN 62109-2, IEC/EN 61000-6-1/2/3/4

SUN-BK(80-250)-5.12KWH-EU-AM4-32L › Battery Input Data
Model	SUN-BK80-5.12KWH-EU-AM4-32L	SUN-BK100-5.12KWH-EU-AM4-32L	SUN-BK160-5.12KWH-EU-AM4-32L	SUN-BK200-5.12KWH-EU-AM4-32L	SUN-BK250-5.12KWH-EU-AM4-32L
Battery Type	LiFePO4
Battery Voltage Range(V)	44.8-57.6 V
Battery Nominal Energy (Wh)	5120Wh
Max.Charging/Discharging Current(A)	50A
Charging Strategy for Li-ion Battery	Self-adaption to BMS

SUN-BK(80-250)-5.12KWH-EU-AM4-32L › PV String Input Data
Model	SUN-BK80-5.12KWH-EU-AM4-32L	SUN-BK100-5.12KWH-EU-AM4-32L	SUN-BK160-5.12KWH-EU-AM4-32L	SUN-BK200-5.12KWH-EU-AM4-32L	SUN-BK250-5.12KWH-EU-AM4-32L
Max. PV access power (W)	5760W
Max. Operating PV Input Current (A)	32+32+32+32A
Max. Input Short-Circuit Current (A)	48+48+48+48A
Rated PV Input voltage (V)	42.5V
Start-up Voltage (V)	25Vdc
MPPT voltage range (V)	20 ~ 55V
No. of MPP Trackers/No. of Strings MPP Tracker	4/1+1+1+1

SUN-BK(80-250)-5.12KWH-EU-AM4-32L › AC Input / Output Data
Model	SUN-BK80-5.12KWH-EU-AM4-32L	SUN-BK100-5.12KWH-EU-AM4-32L	SUN-BK160-5.12KWH-EU-AM4-32L	SUN-BK200-5.12KWH-EU-AM4-32L	SUN-BK250-5.12KWH-EU-AM4-32L
Rated AC Input/Output Active Power (W)	800W	1000W	1600W	2000W	2500W
Max. AC Input/Output Active Power (W)	880W	1100W	1760W	2200W	2750W
Max. off grid power (W)	2500W
Rated AC Input/Output Current (A)	3.7A / 3.5A	4.6A / 4.4A	7.3A / 7.0A	9.1A / 8.7A	11.4A / 10.9A
Max. AC Input/Output Current (A)	4A / 3.9A	5A / 4.8A	8A / 7.7A	10A / 9.6A	12.5A / 12A
Peak Power (off-grid) (W)	2 time of rated power, 10s
AC Input / Output Frequency and Voltage	50Hz ( 45Hz ~ 55Hz ) , 60Hz ( 55Hz ~ 65Hz ) , L+N +PE , 220 / 230 Vac
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Max. Continuous AC Passthrough (grid to load)(A)	30A
DC Injection Current	<0.5%In

SUN-BK(80-250)-5.12KWH-EU-AM4-32L › Efficiency
Model	SUN-BK80-5.12KWH-EU-AM4-32L	SUN-BK100-5.12KWH-EU-AM4-32L	SUN-BK160-5.12KWH-EU-AM4-32L	SUN-BK200-5.12KWH-EU-AM4-32L	SUN-BK250-5.12KWH-EU-AM4-32L
Max. Efficiency	96.5%
Euro Efficiency	96.0%
MPPT Efficiency	>99%

SUN-BK(80-250)-5.12KWH-EU-AM4-32L › Equipment Protection
Model	SUN-BK80-5.12KWH-EU-AM4-32L	SUN-BK100-5.12KWH-EU-AM4-32L	SUN-BK160-5.12KWH-EU-AM4-32L	SUN-BK200-5.12KWH-EU-AM4-32L	SUN-BK250-5.12KWH-EU-AM4-32L
Integrated	DC reverse polarity protection , AC Output Overcurrent Protection , AC Output Overvoltage Protection , AC Output Short Circuit Protection Thermal Protection , Insulation Impedance detection , Anti-islanding protection
Surge Protection Level	TYPE II(DC),TYPE II(AC)

SUN-BK(80-250)-5.12KWH-EU-AM4-32L › General Data
Model	SUN-BK80-5.12KWH-EU-AM4-32L	SUN-BK100-5.12KWH-EU-AM4-32L	SUN-BK160-5.12KWH-EU-AM4-32L	SUN-BK200-5.12KWH-EU-AM4-32L	SUN-BK250-5.12KWH-EU-AM4-32L
Max. Inverter Parallel NO.	3 pcs (up to 7.5 kW rated output)
Communication Interfaces	Wi-Fi, Bluetooth, LoRa
Operating Temperature Range (°C)	-10°C ~ 55°C, >45℃ Derating,( -20℃~55℃ with heating, optional)
Permissible Altitude (m)	2000m
Ingress Protection(IP) Rating	IP65
Cabinet Size( W × H × D )	560 × 510 × 210mm
Weight (kg)	52±3kg
Permissible Ambient Humidity	0% ~ 95% ( No Condensing )
Warranty	10 years
Grid Regulation	VDE 4105,IEC61727/62116,VDE0126,AS4777.2,CEI0-21,EN50549-1,G98,C10-11,UNE217002
Safety EMC / Standard	IEC 62619,UN38.3,IEC/EN62109-1, IEC/EN 62109-2, IEC/EN 61000-6-1/2/3/4

AE-F5.12 › Battery Technical Specification
Battery Chemistry	LiFePO4
Battery Nominal Voltage	51.2V
Battery Nominal Energy	5120Wh
Max. Charging / Discharging Current	50A
Battery Operating Voltage	44.8V-57.6V
Battery Cycle Life	≥6000 ( @25°C±2°C, 70%EOL )
Max. Stack NO.	3 pcs (up to 15.36kWh )
Parallel Capability	16 pcs*

AE-F5.12 › Other Technical Specification
Display	LED ( SOC, Alarm )
Communication Interfaces	LoRa
Dimension ( W × D × H )( mm )	450 × 210 × 420( without terminal)
Ingress Protection(IP) Rating	IP 65
Weight Approximate	40±3kg
Operating Temperature Range	-10°C~55°C ( -20℃~55℃ with heating, optional)
Max. Operating Altitude	2000m
Relative Humidity	0% ~ 95% ( No Condensing )
Certification	UN38.3, IEC 62619, CE
Installation Style	Floor-Mounted,Stacked-Mounted
Warranty	10 years

Dokumenter

Datasheet (2026-09-10)Datablad · EN · 1,9 MB · PDF ↗

Alle dokumenter åbnes fra producentens egne servere, så du altid får den fil Deye aktuelt offentliggør. De fleste er på engelsk.

Vigtigste funktioner

Som angivet af producenten.

Plug & Play
Integrated inverter & battery in one unit
800-2500W power options
Upgraded 5.12 kWh single-unit capacity
Support up to 8 PV modules and 5760W PV access power¹
Scalable up to 81.92kWh • 4ms on/off-grid switching • Multiple Operating Modes: Grid-Tied, Off-Grid, AC-Coupled
