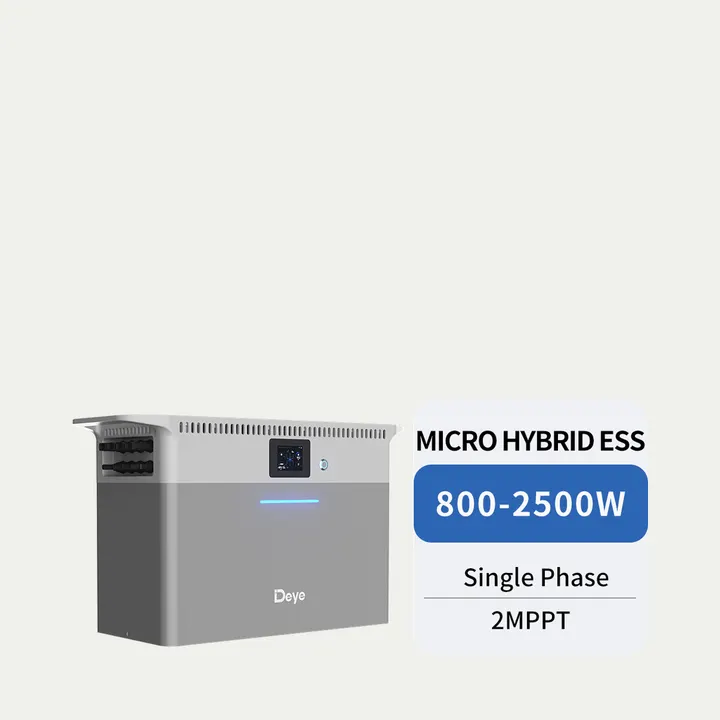

DeyeAlt-i-en-system0,8–2,5 kW

SUN-BK(80-250)-2.56KWH-EU-AM2-32L

SUN-BK(80-250)-2.56KWH-EU-AM2-32L samler lagring og effektelektronik i ét system, så der er mindre at planlægge og kabelføre på stedet. Det fås i 4 modeller, 0,8–2,5 kW.

Vi giver tilbud på produktet alene eller sammen med en Deye-hybridinverter og det tilbehør systemet har brug for. Tilgængelighed, leveringstid og levering til din adresse bekræftes i det skriftlige tilbud.

Bed om et tilbud Datablad

Ingen priser online: hver ordre får et skriftligt tilbud.

Producentens kategori: All-in-One ESS
Nominel værdi: 0,8–2,5 kW
Modeller på denne side: 4

Modeller

Model	Nominel værdi
SUN-BK80-2.56KWH-EU-AM2-32L	0,8 kW
SUN-BK160-2.56KWH-EU-AM2-32L	1,6 kW
SUN-BK200-2.56KWH-EU-AM2-32L	2 kW
SUN-BK250-2.56KWH-EU-AM2-32L	2,5 kW

Tekniske specifikationer

Værdier som offentliggjort af producenten, én kolonne pr. model hvor producentens tabel har dem.

Kun forskelle

Vælg model

Gå til en gruppe

AC Technical Specification
PV String Input Data
Efficiency
Equipment Protection
Battery Input Data
General Data
Battery Technical Specification
Other Technical Specification

En værdi der strækker sig over alle modelkolonner, er den samme for alle modeller.

AC Technical Specification
Model	SUN-BK80-2.56KWH-EU-AM2-32L	SUN-BK160-2.56KWH-EU-AM2-32L	SUN-BK200-2.56KWH-EU-AM2-32L	SUN-BK250-2.56KWH-EU-AM2-32L
Rated AC Input / Output Active Power	800W	1600W	2000W	2500W
Max. AC Input / Output Active Power	880W	1760W	2200W	2750W
Max. off grid power	2500W
AC Input / Output Frequency and Voltage	50Hz ( 45Hz ~ 55Hz ) , 60Hz ( 55Hz ~ 65Hz ) , L+N +PE , 220 / 230 Vac
Rated Grid Input / Output Current	3.7A / 3.5A	7.3A / 7.0A	9.1A / 8.7A	11.4A / 10.9A
Max.Grid Input / Output Current	4A / 3.9A	8.0A / 7.7A	10.0A / 9.6A	12.5A / 12A
Peak Power ( off-grid )	2 time of rated power, 10s
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Max. Continuous AC Passthrough (grid to load)	30A
DC Injection Current	<0.5%In

PV String Input Data
Model	SUN-BK80-2.56KWH-EU-AM2-32L	SUN-BK160-2.56KWH-EU-AM2-32L	SUN-BK200-2.56KWH-EU-AM2-32L	SUN-BK250-2.56KWH-EU-AM2-32L
Max. PV Access Power	4400W
Max. PV Input Power (W)	3520W
Max. Operating PV Input Current	32A+32A
Max. Input Short-Circuit Current	48A+48A
Rated PV Input Voltage	42.5V
Start-up Voltage	25Vdc
MPPT Voltage Range	20 ~ 55V
No. of MPP Trackers/No. of Strings MPP Tracker	2/2+2

Efficiency
Model	SUN-BK80-2.56KWH-EU-AM2-32L	SUN-BK160-2.56KWH-EU-AM2-32L	SUN-BK200-2.56KWH-EU-AM2-32L	SUN-BK250-2.56KWH-EU-AM2-32L
Max. Efficiency	96.5%
Euro Efficiency	96.0%
MPPT Efficiency	>99%

Equipment Protection
Model	SUN-BK80-2.56KWH-EU-AM2-32L	SUN-BK160-2.56KWH-EU-AM2-32L	SUN-BK200-2.56KWH-EU-AM2-32L	SUN-BK250-2.56KWH-EU-AM2-32L
Integrated	DC reverse polarity protection , Thermal Protection , AC Output Overcurrent Protection , Insulation Impedance detection , AC Output Overvoltage Protection , Anti-islanding protection , AC Output Short Circuit Protection Thermal Protection , Insulation Impedance detection , AC Output Overvoltage Protection
Surge Protection Level	TYPE II(DC),TYPE II(AC)

Battery Input Data
Model	SUN-BK80-2.56KWH-EU-AM2-32L	SUN-BK160-2.56KWH-EU-AM2-32L	SUN-BK200-2.56KWH-EU-AM2-32L	SUN-BK250-2.56KWH-EU-AM2-32L
Battery Type	LiFePO4
Max.Charging/Discharging Current	50A
Battery Nominal Energy	2560Wh
Battery Voltage Range	44.8-57.6 V
Charging Strategy for Li-ion Battery	Self-adaption to BMS

General Data
Model	SUN-BK80-2.56KWH-EU-AM2-32L	SUN-BK160-2.56KWH-EU-AM2-32L	SUN-BK200-2.56KWH-EU-AM2-32L	SUN-BK250-2.56KWH-EU-AM2-32L
Max. Inverter Parallel NO.	3 pcs (up to 7.5 kW rated output)
Communication Interfaces	Wi-Fi, Bluetooth, LoRa
Dimension ( W × D × H )	560 × 330 × 210mm
Weight (kg)	30kg
Operating Temperature Range	-10°C ~ 55°C, >45℃ Derating,( -20℃~55℃ with heating, optional)
Permissible Altitude	2000m
Permissible Ambient Humidity	0% ~ 95% ( No Condensing )
Ingress Protection(IP) Rating	IP65
Safety EMC / Standard	IEC 62619,UN38.3,IEC/EN62109-1 IEC/EN 62109-2, IEC/EN 61000-6-1/2/3/4
Grid Regulation	VDE 4105,IEC61727/62116,VDE0126,AS4777.2,CEI0-21,EN50549-1,G98,C10-11,UNE217002
Warranty	10 years
Model	AE-F2.56

Battery Technical Specification
Model	SUN-BK80-2.56KWH-EU-AM2-32L	SUN-BK160-2.56KWH-EU-AM2-32L	SUN-BK200-2.56KWH-EU-AM2-32L	SUN-BK250-2.56KWH-EU-AM2-32L
Battery Chemistry	LiFePO4
Battery Nominal Voltage	51.2V
Battery Nominal Energy	2560Wh
Max. Charging / Discharging Current	50A
Battery Operating Voltage	44.8V-57.6V
Battery Cycle Life	≥6000 ( @25°C±2°C, 70%EOL )
Max. Stack NO.	5 pcs (up to 12.8kWh )
Parallel Capability	40 pcs

Other Technical Specification
Model	SUN-BK80-2.56KWH-EU-AM2-32L	SUN-BK160-2.56KWH-EU-AM2-32L	SUN-BK200-2.56KWH-EU-AM2-32L	SUN-BK250-2.56KWH-EU-AM2-32L
Display	LED ( SOC, Alarm )
Communication Interfaces	LoRa
Dimension ( W × D × H )	450 × 210 × 244mm
Ingress Protection(IP) Rating	IP 65
Weight Approximate ( kg )	22±3kg
Operating Temperature Range	-10°C~55°C ( -20℃~55℃ with heating, optional)
Max. Operating Altitude	2000m
Relative Humidity	0% ~ 95% ( No Condensing )
Certification	UN38.3, IEC 62619, CE
Installation Style	Floor-Mounted,Stacked-Mounted
Warranty	10 years

Dokumenter

Datasheet (2026-05-06)Datablad · EN · 1,6 MB · PDF ↗
User manual (2026-09-04)Manual · EN · 10,9 MB · PDF ↗

Alle dokumenter åbnes fra producentens egne servere, så du altid får den fil Deye aktuelt offentliggør. De fleste er på engelsk.

Vigtigste funktioner

Som angivet af producenten.

Plug & Play
All-in-One Design: Integrated Inverter & Battery
Versatile Power Options: 800W/1600W/2000W/2500W
Dual Independent MPPTs
Compatible with 16A PV Modules
4ms On/Off-Grid Switching
Multiple Operating Modes: Grid-Tied, Off-Grid, AC-Coupled

Uafhængig forhandlerSECURISTIKA SRL er en uafhængig forhandler af Deye-produkter. Denne hjemmeside er ikke tilknyttet, godkendt af eller drevet af producenten.

Specifikationer, funktioner og dokumenter som offentliggjort af producenten. Tjek det aktuelle datablad før du bestiller. Kildeside (åbner i en ny fane)
