DeyeСистема „всичко в едно“2,56 kWh

SUN-BK80/160/200/250-2.56KWH-EU-AM4-18/32(L)

SUN-BK80/160/200/250-2.56KWH-EU-AM4-18/32(L) обединява съхранението на енергия и силовата електроника в една система, така че на обекта има по-малко за планиране и окабеляване. Предлага се в 9 модела (2,56 kWh).

Изготвяме оферта за този продукт самостоятелно или заедно с хибриден инвертор Deye и аксесоарите, от които системата се нуждае. Наличността, срокът на доставка и доставката до Вашия обект се потвърждават в писмената оферта.

Поискайте оферта Технически лист

Цените не се публикуват онлайн: за всяка поръчка изготвяме писмена оферта.

Категория на производителя: All-in-One ESS
Диапазон: 2,56 kWh
Модели на тази страница: 9

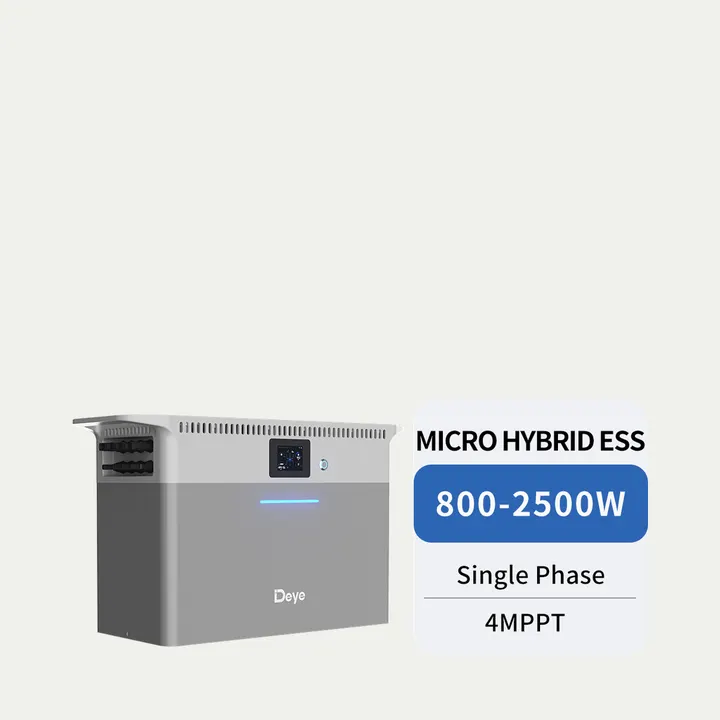

Deye SUN-BK80/160/200/250-2.56KWH-EU-AM4-18/32(L)

Модели

Модел	Номинална стойност
SUN-BK80-2.56KWH-EU-AM4-18L	0,8 kW
SUN-BK160-2.56KWH-EU-AM4-18L	1,6 kW
SUN-BK200-2.56KWH-EU-AM4-18L	2 kW
SUN-BK250-2.56KWH-EU-AM4-18L	2,5 kW
SUN-BK80-2.56KWH-EU-AM4-32L	0,8 kW
SUN-BK160-2.56KWH-EU-AM4-32L	1,6 kW
SUN-BK200-2.56KWH-EU-AM4-32L	2 kW
SUN-BK250-2.56KWH-EU-AM4-32L	2,5 kW
AE-F2.56	2,56 kWh

Технически спецификации

Стойности, публикувани от производителя, по една колона за всеки модел, когато таблицата на производителя ги съдържа.

Само разликите

Модел

Към група

SUN-BK(80-250)-2.56KWH-EU-AM4-18L › Battery Input Data
SUN-BK(80-250)-2.56KWH-EU-AM4-18L › PV String Input Data
SUN-BK(80-250)-2.56KWH-EU-AM4-18L › AC Input/Output Data
SUN-BK(80-250)-2.56KWH-EU-AM4-18L › Efficiency
SUN-BK(80-250)-2.56KWH-EU-AM4-18L › Equipment Protection
SUN-BK(80-250)-2.56KWH-EU-AM4-18L › General Data
SUN-BK(80-250)-2.56KWH-EU-AM4-32L › Battery Input Data
SUN-BK(80-250)-2.56KWH-EU-AM4-32L › PV String Input Data
SUN-BK(80-250)-2.56KWH-EU-AM4-32L › AC Input/Output Data
SUN-BK(80-250)-2.56KWH-EU-AM4-32L › Efficiency
SUN-BK(80-250)-2.56KWH-EU-AM4-32L › Equipment Protection
SUN-BK(80-250)-2.56KWH-EU-AM4-32L › General Data
AE-F2.56 › Battery Technical Specification
AE-F2.56 › Other Technical Specification

Стойност, която обхваща всички колони с модели, е еднаква за всички модели.

SUN-BK(80-250)-2.56KWH-EU-AM4-18L › Battery Input Data
Модел	SUN-BK80-2.56KWH-EU-AM4-18L	SUN-BK160-2.56KWH-EU-AM4-18L	SUN-BK200-2.56KWH-EU-AM4-18L	SUN-BK250-2.56KWH-EU-AM4-18L
Battery Type	LiFePO4
Battery Voltage Range(V)	44.8-57.6 V
Battery Nominal Energy(Wh)	2560Wh
Max.Charging/Discharging Current(A)	50A
Charging Strategy for Li-ion Battery	Self-adaption to BMS

SUN-BK(80-250)-2.56KWH-EU-AM4-18L › PV String Input Data
Модел	SUN-BK80-2.56KWH-EU-AM4-18L	SUN-BK160-2.56KWH-EU-AM4-18L	SUN-BK200-2.56KWH-EU-AM4-18L	SUN-BK250-2.56KWH-EU-AM4-18L
Max. PV access power (W)	4400W
Max. Operating PV Input Current (A)	18+18+18+18A
Max. Input Short-Circuit Current (A)	27+27+27+27A
Rated PV Input voltage (V)	42.5V
Start-up Voltage (V)	25Vdc
MPPT voltage range (V)	20 ~ 55V
No. of MPP Trackers/No. of Strings MPP Tracker	4/1+1+1+1

SUN-BK(80-250)-2.56KWH-EU-AM4-18L › AC Input/Output Data
Модел	SUN-BK80-2.56KWH-EU-AM4-18L	SUN-BK160-2.56KWH-EU-AM4-18L	SUN-BK200-2.56KWH-EU-AM4-18L	SUN-BK250-2.56KWH-EU-AM4-18L
Rated AC Input/Output Active Power (W)	800W	1600W	2000W	2500W
Max. AC Input/Output Active Power (W)	880W	1760W	2200W	2750W
Max. off grid power (W)	2500W
Rated AC Input/Output Current (A)	3.7A / 3.5A	7.3A / 7.0A	9.1A / 8.7A	11.4A / 10.9A
Max. AC Input/Output Current (A)	4A / 3.9A	8A / 7.7A	10A / 9.6A	12.5A / 12A
Peak Power (off-grid) (W)	2 time of rated power, 10s
AC Input / Output Frequency and Voltage	50Hz ( 45Hz ~ 55Hz ) , 60Hz ( 55Hz ~ 65Hz ) , L+N +PE , 220 / 230 Vac
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Max. Continuous AC Passthrough (grid to load)(A)	30A
DC Injection Current	<0.5%In

SUN-BK(80-250)-2.56KWH-EU-AM4-18L › Efficiency
Модел	SUN-BK80-2.56KWH-EU-AM4-18L	SUN-BK160-2.56KWH-EU-AM4-18L	SUN-BK200-2.56KWH-EU-AM4-18L	SUN-BK250-2.56KWH-EU-AM4-18L
Max. Efficiency	96.5%
Euro Efficiency	96.0%
MPPT Efficiency	>99%

SUN-BK(80-250)-2.56KWH-EU-AM4-18L › Equipment Protection
Модел	SUN-BK80-2.56KWH-EU-AM4-18L	SUN-BK160-2.56KWH-EU-AM4-18L	SUN-BK200-2.56KWH-EU-AM4-18L	SUN-BK250-2.56KWH-EU-AM4-18L
Integrated	DC reverse polarity protection , Thermal Protection , AC Output Overcurrent Protection , Insulation Impedance detection , AC Output Overvoltage Protection , Anti-islanding protection , AC Output Short Circuit Protection Thermal Protection , Insulation Impedance detection , AC Output Overvoltage Protection
Surge Protection Level	TYPE II(DC),TYPE II(AC)

SUN-BK(80-250)-2.56KWH-EU-AM4-18L › General Data
Модел	SUN-BK80-2.56KWH-EU-AM4-18L	SUN-BK160-2.56KWH-EU-AM4-18L	SUN-BK200-2.56KWH-EU-AM4-18L	SUN-BK250-2.56KWH-EU-AM4-18L
Max. Inverter Parallel NO.	3 pcs (up to 7.5 kW rated output)
Communication Interfaces	Wi-Fi, Bluetooth, LoRa
Operating Temperature Range(°C)	-10°C ~ 55°C, >45℃ Derating,( -20℃~55℃ with heating, optional)
Permissible Altitude(m)	2000m
Ingress Protection(IP) Rating	IP65
Dimension ( W × D × H )	560 × 330 × 210mm
Weight (kg)	30kg
Permissible Ambient Humidity	0% ~ 95% ( No Condensing )
Warranty	10 years
Grid Regulation	VDE 4105,IEC61727/62116,VDE0126,AS4777.2,CEI0-21,EN50549-1,G98,C10-11,UNE217002
Safety EMC / Standard	IEC 62619,UN38.3,IEC/EN62109-1 IEC/EN 62109-2, IEC/EN 61000-6-1/2/3/4

SUN-BK(80-250)-2.56KWH-EU-AM4-32L › Battery Input Data
Модел	SUN-BK80-2.56KWH-EU-AM4-32L	SUN-BK160-2.56KWH-EU-AM4-32L	SUN-BK200-2.56KWH-EU-AM4-32L	SUN-BK250-2.56KWH-EU-AM4-32L
Battery Type	LiFePO4
Battery Voltage Range(V)	44.8-57.6 V
Battery Nominal Energy (Wh)	2560Wh
Max.Charging/Discharging Current(A)	50A
Charging Strategy for Li-ion Battery	Self-adaption to BMS

SUN-BK(80-250)-2.56KWH-EU-AM4-32L › PV String Input Data
Модел	SUN-BK80-2.56KWH-EU-AM4-32L	SUN-BK160-2.56KWH-EU-AM4-32L	SUN-BK200-2.56KWH-EU-AM4-32L	SUN-BK250-2.56KWH-EU-AM4-32L
Max. PV Access Power(W)	5760W
Max. Operating PV Input Current (A)	32+32+32+32A
Max. Input Short-Circuit Current (A)	48+48+48+48A
Rated PV Input Voltage(V)	42.5V
Start-up Voltage(V)	25Vdc
MPPT Voltage Range(V)	20 ~ 55V
No. of MPP Trackers/No. of Strings MPP Tracker	4/1+1+1+1

SUN-BK(80-250)-2.56KWH-EU-AM4-32L › AC Input/Output Data
Модел	SUN-BK80-2.56KWH-EU-AM4-32L	SUN-BK160-2.56KWH-EU-AM4-32L	SUN-BK200-2.56KWH-EU-AM4-32L	SUN-BK250-2.56KWH-EU-AM4-32L
Rated AC Input / Output Active Power (W)	800W	1600W	2000W	2500W
Max. AC Input / Output Active Power (W)	880W	1760W	2200W	2750W
Max. off grid power (W)	2500W
Rated AC Input/Output Current (A)	3.7A / 3.5A	7.3A / 7.0A	9.1A / 8.7A	11.4A / 10.9A
Max. AC Input/Output Current (A)	4A / 3.9A	8A / 7.7A	10A / 9.6A	12.5A / 12A
Peak Power ( off-grid )(W)	2 time of rated power, 10s
AC Input / Output Frequency and Voltage	50Hz ( 45Hz ~ 55Hz ) , 60Hz ( 55Hz ~ 65Hz ) , L+N +PE , 220 / 230 Vac
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Max. Continuous AC Passthrough (grid to load)(A)	30A
DC Injection Current	<0.5%In

SUN-BK(80-250)-2.56KWH-EU-AM4-32L › Efficiency
Модел	SUN-BK80-2.56KWH-EU-AM4-32L	SUN-BK160-2.56KWH-EU-AM4-32L	SUN-BK200-2.56KWH-EU-AM4-32L	SUN-BK250-2.56KWH-EU-AM4-32L
Max. Efficiency	96.5%
Euro Efficiency	96.0%
MPPT Efficiency	>99%

SUN-BK(80-250)-2.56KWH-EU-AM4-32L › Equipment Protection
Модел	SUN-BK80-2.56KWH-EU-AM4-32L	SUN-BK160-2.56KWH-EU-AM4-32L	SUN-BK200-2.56KWH-EU-AM4-32L	SUN-BK250-2.56KWH-EU-AM4-32L
Integrated	DC reverse polarity protection , Thermal Protection , AC Output Overcurrent Protection , Insulation Impedance detection , AC Output Overvoltage Protection , Anti-islanding protection , AC Output Short Circuit Protection Thermal Protection , Insulation Impedance detection , AC Output Overvoltage Protection
Surge Protection Level	TYPE II(DC),TYPE II(AC)

SUN-BK(80-250)-2.56KWH-EU-AM4-32L › General Data
Модел	SUN-BK80-2.56KWH-EU-AM4-32L	SUN-BK160-2.56KWH-EU-AM4-32L	SUN-BK200-2.56KWH-EU-AM4-32L	SUN-BK250-2.56KWH-EU-AM4-32L
Max. Inverter Parallel NO.	3 pcs (up to 7.5 kW rated output)
Communication Interface	Wi-Fi, Bluetooth, LoRa
Operating Temperature Range (°C)	-10°C ~ 55°C, >45℃ Derating,( -20℃~55℃ with heating, optional)
Permissible Altitude (m)	2000m
Ingress Protection(IP) Rating	IP65
Dimension ( W × D × H )	560 × 330 × 210mm
Weight (kg)	30kg
Permissible Ambient Humidity	0% ~ 95% ( No Condensing )
Warranty	10 years
Grid Regulation	VDE 4105,IEC61727/62116,VDE0126,AS4777.2,CEI0-21,EN50549-1,G98,C10-11,UNE217002
Safety EMC / Standard	IEC 62619,UN38.3,IEC/EN62109-1 IEC/EN 62109-2, IEC/EN 61000-6-1/2/3/4

AE-F2.56 › Battery Technical Specification
Battery Chemistry	LiFePO4
Battery Nominal Voltage	51.2V
Battery Nominal Energy	2560Wh
Max. Charging / Discharging Current	50A
Battery Operating Voltage	44.8V-57.6V
Battery Cycle Life	≥6000 ( @25°C±2°C, 0.5C / 0.5C, 70%EOL )
Max. Stack NO.	5 pcs (up to 12.8kWh )
Parallel Capability	40 pcs

AE-F2.56 › Other Technical Specification
Display	LED ( SOC, Alarm )
Communication Interfaces	LoRa
Dimension ( W × D × H )(mm)	450 × 210 × 244 (without terminal)
Ingress Protection(IP) Rating	IP 65
Weight Approximate	22±3kg
Operating Temperature Range	-10°C~55°C ( -20℃~55℃ with heating, optional)
Max. Operating Altitude	2000m
Relative Humidity	0% ~ 95% ( No Condensing )
Certification	UN38.3, IEC 62619, CE
Installation Style	Floor-Mounted,Stacked-Mounted
Warranty	10 years

Документи

Datasheet (2026-08-17)Технически лист · EN · 1,8 MB · PDF ↗
User manual (2026-09-04)Ръководство · EN · 11,7 MB · PDF ↗

Всички документи се отварят от собствените сървъри на производителя, така че винаги получавате файла, който Deye публикува в момента. Повечето са на английски език.

Основни характеристики

По данни на производителя.

Plug & Play
All-in-One Design: Integrated Inverter & Battery
Versatile Power Options: 800W/1600W/2000W/2500W
4 Independent MPPTs
Flexible Expansion up to 102.4kWh¹
Support up to 8 PV modules and 5760W PV access power ²
4ms On/Off-Grid Switching
Multiple Operating Modes: Grid-Tied, Off-Grid, AC-Coupled
